LED Bars



Application:

Best for outdoor double side light box from 100 to 300mm (4 to 12 inch)

Outdoor single side light box from 80 to 150mm (3 to 6 inch)



Features & benefits:
High brightness and efficiency CREE LED
Waterproof module with flying leads for exterior use
Customized length available
IP67 tested


Color Available:




Part No.

 LED QTY

 Beam Angle

 Input Vol



 Power/pc



 Lumen/pc

 Dimensions

Max QTY/Seris



YLW9130A



3pcs

12*56°

DC24V

Max7.9W

610lm

230*31.6

10pcs


YLW9131A


5pcs
12*56°
DC24V
Max13.2W
1020lm
360*31.6
6pcs


YLW9132A


6pcs
12*56°
DC24V
Max15W
1200lm
430*31.6
5pcs

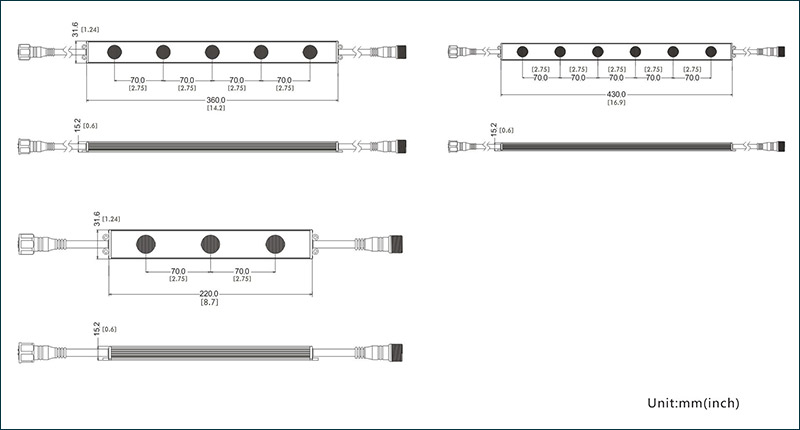

Dimensions:
