Application:
⊙Full solution for cover letter & single side light box from 100 to 250mm (4 to 10 inch)
⊙One family one bin
⊙All color available (except RGB)
Features & benefits:
⊙Lit by Philips Lumileds
⊙15*55 asymmetric optics design
⊙High Power modules suitable for 3m high light box
⊙Easy Mounting System
⊙IP67 tested
Color Available:
|
Part No. |
LED QTY |
Beam Angle |
Input Vol |
Power/pc
|
Lumen/pc |
Max QTY/serie |
|
ULW383B
|
1pc |
15*25° |
DC12V |
3W |
240lm |
20pcs |

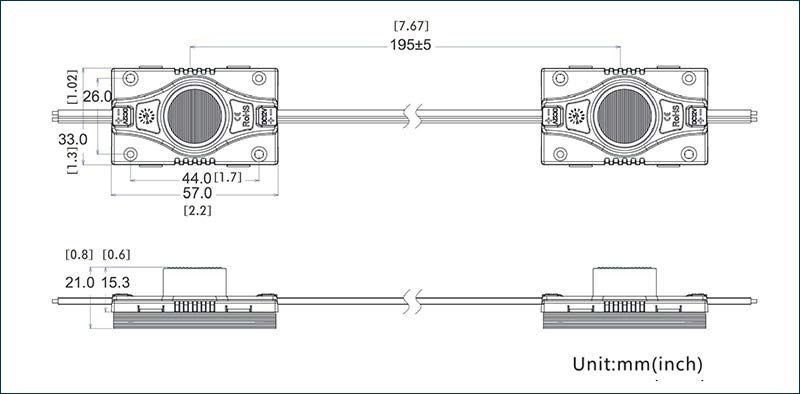

Dimensions:
