Standard Modules



Application:

Full solution for channel letter & light box from 40 to 250mm (1.6  to 10 inch)
One family one bin


Features & benefits:
Lit by Philips Lumileds LED, L70B50>50000 hrs
High efficiency over 100 lm/W
3 MacAdam ellipse each bin
165 degree own design optics
Aluminum PCB for heat dissipation
All components protected by PC cover, high reliability


Color Available:





Part No.

 LED QTY

 Beam Angle

 Input Vol



 Power/pc



 Lumen/pc

 Max QTY/serie



UTW614B



4 pcs

165°

DC12V

3.0W

288 lm

25 pcs

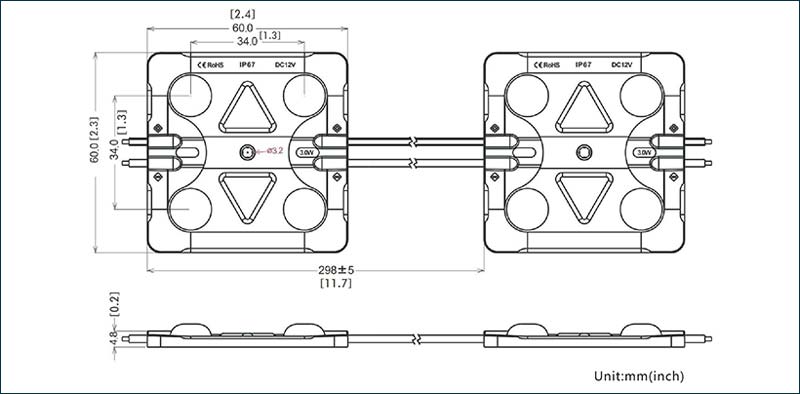

Dimensions:
