Application:
⊙Full solution for channel letter & light box from 80 to 350mm (3 to 14 inch)
⊙One family one bin
Features & benefits:
⊙Lit by Philips Lumileds LED, L70B50>50000 hrs
⊙High efficiency over 95 lm/W
⊙3 MacAdam ellipse each bin
⊙170 degree own design optics
⊙Aluminum PCB for heat dissipation
⊙Good value balance Lumen/USD
Color Available:
|
Part No. |
LED QTY |
Beam Angle |
Input Vol |
Power/pc
|
Lumen/pc |
Max QTY/serie |
|
UTW922B
|
2 pcs |
170° |
DC12V |
2W |
190 lm |
25 pcs |

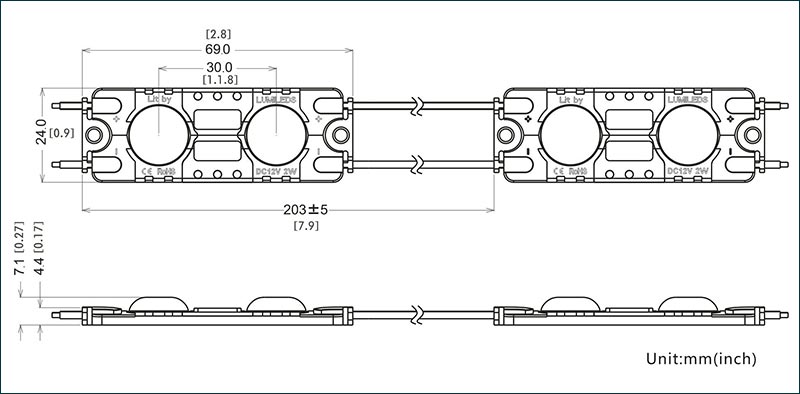

Dimensions:
