Standard Plus Modules



Application:

Full solution for channel letter & light box from 80 to 350mm (3 to 14 inch)
One family one bin


Features & benefits:
Lit by Philips Lumileds LED, L70B50>50000 hrs
High efficiency over 95 lm/W
3 MacAdam ellipse each bin
170 degree own design optics
Aluminum PCB for heat dissipation
Good value balance Lumen/USD


Color Available:






Part No.

 LED QTY

 Beam Angle

 Input Vol



 Power/pc



 Lumen/pc

 Max QTY/serie



UTW921B



1 pcs

170°

DC12V

1W

95 lm

40 pcs

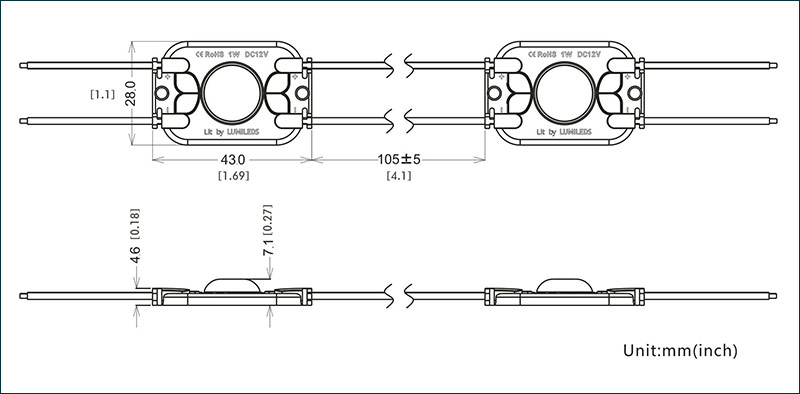

Dimensions:
