Premium Modules



Application:

Full solution for channel letter & light box from 80 to 350mm (3 to 14 inch)
One family one bin


Features & benefits:
Lit by Philips Lumileds LED, L70B50>50000 hrs
High efficiency over 90 lm/W
3 MacAdam ellipse each bin
170 degree own design optics
Alum extrusion radiator for heat dissipation
Thermal conductive plastic base & Alum-PCB for heat dissipation


Color Available:






Part No.

 LED QTY

 Beam Angle

 Input Vol



 Power/pc



 Lumen/pc

 Max QTY/serie



MTW998B



9 pcs

170°

DC12V

9W

810 lm

10 pcs

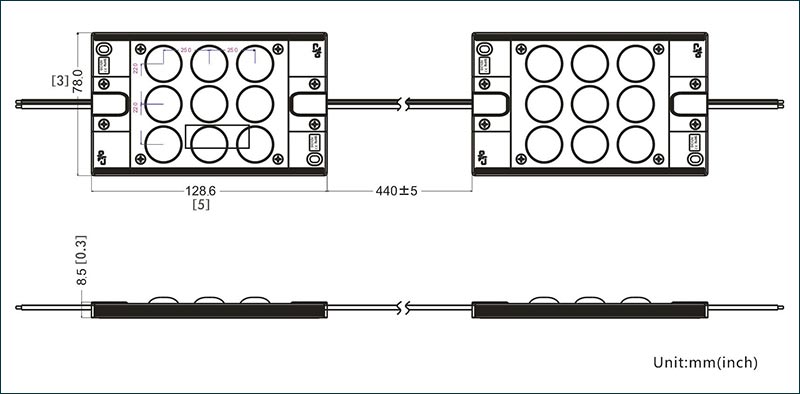

Dimensions:
