Basic Modules



Application:

Full solution for channel letter & single side light box from 40 to 250mm (1.6 to 10 inch)
One family one bin
All color available (except RGB)



Features & benefits:
High efficiency over 93 lm/W
3 MacAdam ellipse each bin
160 degree own design optics
Aluminum PCB for heat dissipation



Color Available:






Part No.

 LED QTY

 Beam Angle

 Input Vol



 Power/pc



 Lumen/pc

 Max QTY/serie



UTW378B



4pc

160°

DC12V

1.2W

112lm

30pcs

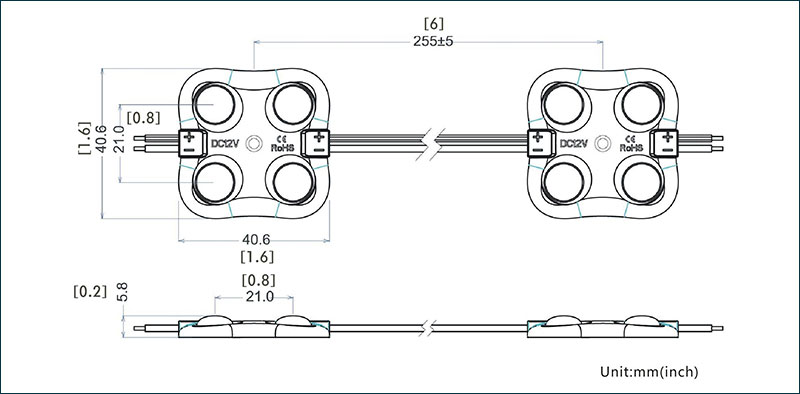

Dimensions:
